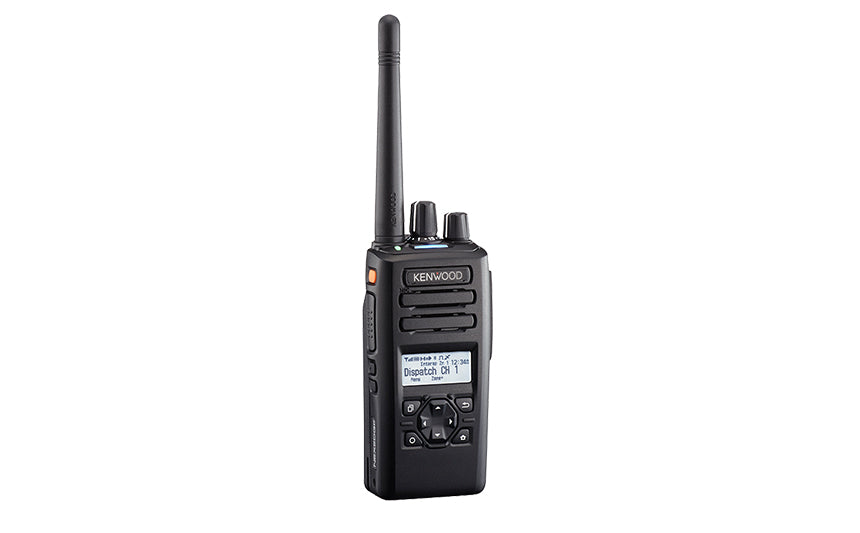

Kenwood NX-3320K2 Multi-Protocol Handheld Radio – NXDN, DMR, Analog, GPS, Bluetooth, 260 Channels, 5W

The Kenwood NX-3320K2 is a high-performance UHF two-way radio built for rugged, mission-critical environments. It supports NXDN and DMR digital protocols alongside conventional FM analog, providing seamless backward compatibility and phased migration capabilities. Operating on the 400–520 MHz band with 5 watts of power, it offers up to 260 channels across 128 zones.

Equipped with an LCD display, keypad, GPS, Bluetooth, and advanced audio processing, the NX-3320K2 is ideal for industries like public safety, construction, and logistics. Its durable design meets MIL-STD-810 standards and carries IP54/55/67 protection against dust and water.

FEATURES:

• Multi-protocol digital radio: Designed to operate under NXDN® or DMR digital,
  and FM analog protocols

• NXDN® Conventional and Type-C & Gen2 Trunking

• DMR Tier 2 Conventional & Site Roaming

• DMR Auto Slot Select

• DMR Tier 3 Trunking

• Mixed Digital & FM Analog Operation allows gradual migration at your own pace

• 4-Line Basic Frame (2-Line Main/Sub-LCD, icon & key guide) / 14 Characters

• 5-Line Text Message Frame (3 Lines of Text, icon & key guide)

• 7-color Light Bar Indicator on the top panel. Individual color can be set for each channel

• 4-way Directional-pad (D-pad) for intuitive control and operation

• Built-In GPS Receiver/Antenna for effective fleet and incident management

• Built-in Bluetooth® for hands-free operation for IoT applications- Applicable
• Bluetooth profiles: HSP (Headset Profile) and SPP (Serial Port Profile)

• Renowned KENWOOD Audio Quality achieved with Active Noise Reduction

• (ANR) that utilizes built-in DSP

• Optional DES and AES Encryption

• Built-in Motion Sensor (Man-down, Stationary and Motion Detection)

• IP54/55/67 and MIL-STD-810 C/D/E/F/G

• 1 Watt Audio Output Power

• UHF: 120 MHz capability

• 260 CH/128 Zones (64 CH/4 Zones for Basic model)

• Maximum of 1,000 CH/Radio with option

• Intrinsically Safe Option

• Paging Call

• Emergency Call

• Status/Text Message

• Remote Stun/Kill/Check


Kenwood NX-3320 Specification
